光電混合無人機系留纜

Photoelectric Hybrid UAV Tethered cable

產品描述 Description

光電混合無人機系留纜是一種專為多軸旋翼式無人機供電和通信應用的系留纜。產品由高性能的超輕的電源線和用來傳輸信號的光纖單元組成。我公司的系留纜有以下特點：

Photoelectric hybrid tethered cable for unmanned aerial vehicle (UAV) is a kind of tethered cable designed for power supply and communication applications of multi-axis rotor UAV.　The product is composed of high performance ultra-light power cord and optical fiber unit used to transmit signals. Our tethered cable has the following features:

產品特點 Features

• 重量輕 : 采用輕型合金導體，并采用航空線纜的先進設計原來來達到大幅減輕重量的目的， 每百米的重量可以達到1.5 KGS （10A, 3000伏）。

Light-weight alloy conductors and advanced design of aviation cables are used to achieve substantial weight reduction, up to 1.5 KGS (10A, 3000 volts) per 100 meters.

• 功率大：該電纜可以長期使用到1500VDC電壓，10A~30A的電流

High power: this cable can be used for a long time up to 1500 VDC, 10A~30A

• 電纜絕緣材料使用機器人電纜的高溫塑料， 可以承受長時間的反復彎曲。

The insulation material is high-temperature plastic, which can withstand repeated bending for a long time

• 抗拉力大 :該電纜的抗拉力由專用的凱夫拉纖維來承擔，抗拉力大于50-100KGS以上，并且重量很輕。

Good tensile resistance : because of special Kevlar fiber,  the tensile resistance is more than 50-100kgs, and the whole weight of cable is very light.

• 鎧裝光單元，保護光纖，即使光纜打結也不影響光纖的傳輸性能。

Armored structure of fiber unit, even if the cable is knotted, the transmission performance of optical fiber will not be affected.

• 1~4單模光纖，可以傳輸高清視頻等信號，抗干擾能力高。

1~4 channels of optical fiber,  which can transmit high-definition video,audio and other signals, high anti-interference ability.

推薦用途 Application

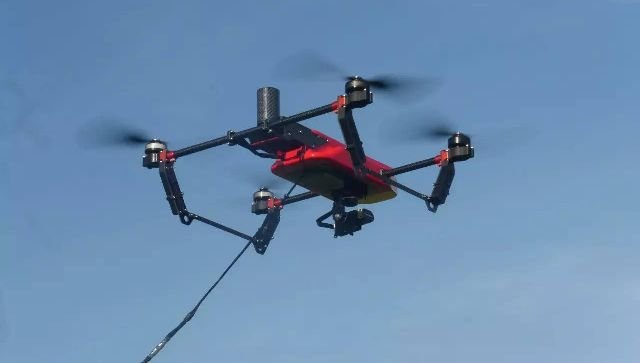

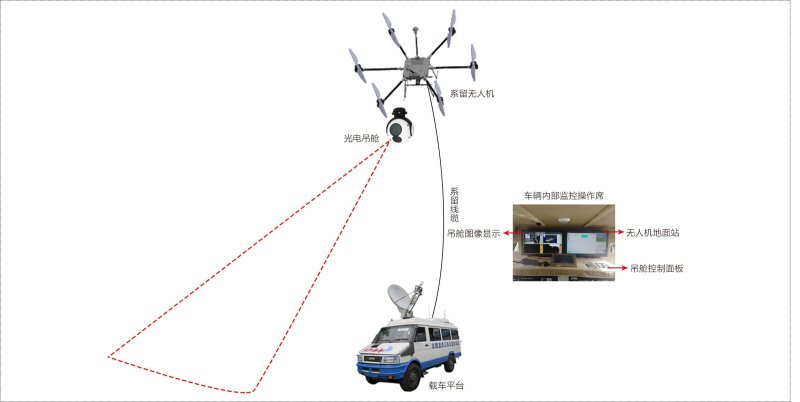

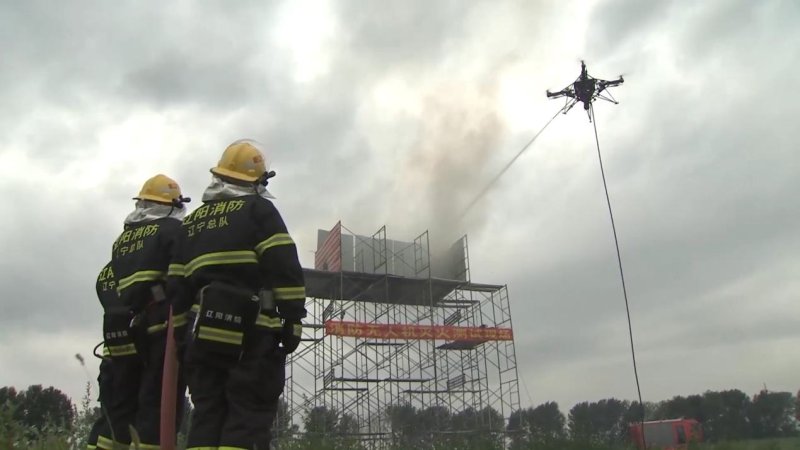

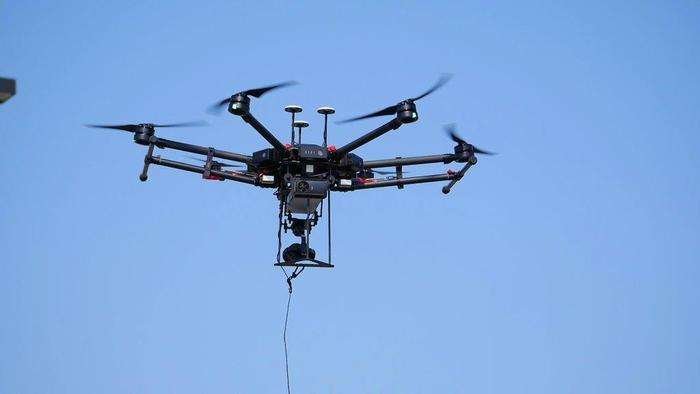

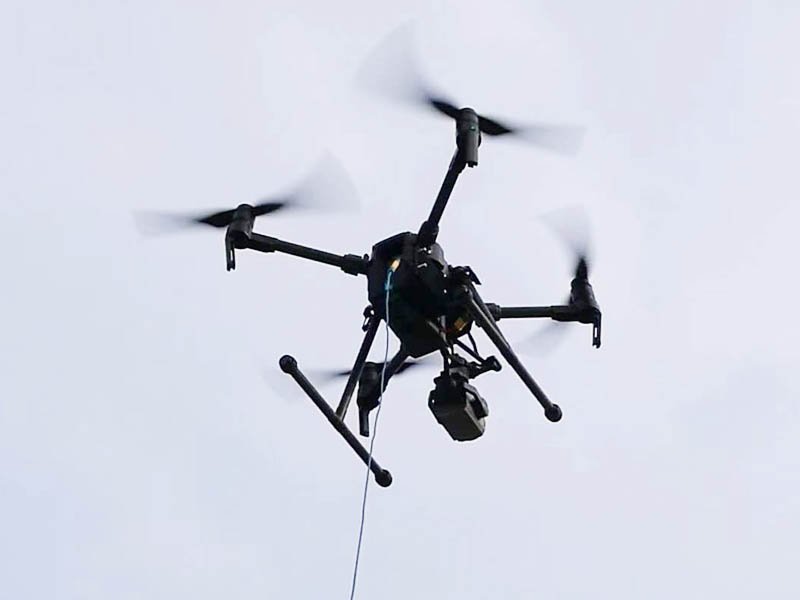

◆ For UAV or robot

主要參數 Main Parameters
